Packing Cushion Machines

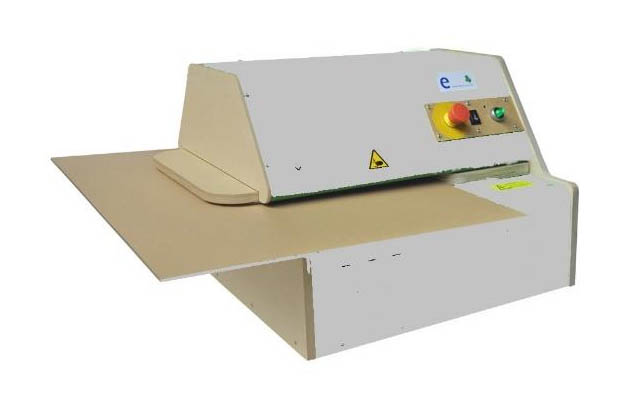

HU-KP-33


Old cartons become packaging materials, cushion material or flat cushion mats.

HU-KP-33

The machine has the following advantages:


  • Table machine
  • Recycling old ones cardboard boxes
  • Lower packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Emergency switch
  • Machine CE compliant


Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:320 mm
Carton thickness:12 mm
Capacity:1 - 3 m3/h
Working height:870 mm
Motor-power:0,55 kW
Electric:230 V / 50 Hz / 1 Ph.
Dimension:
460 x 580 x 620 mm (LxWxH)
Weight:78 kg
weiss

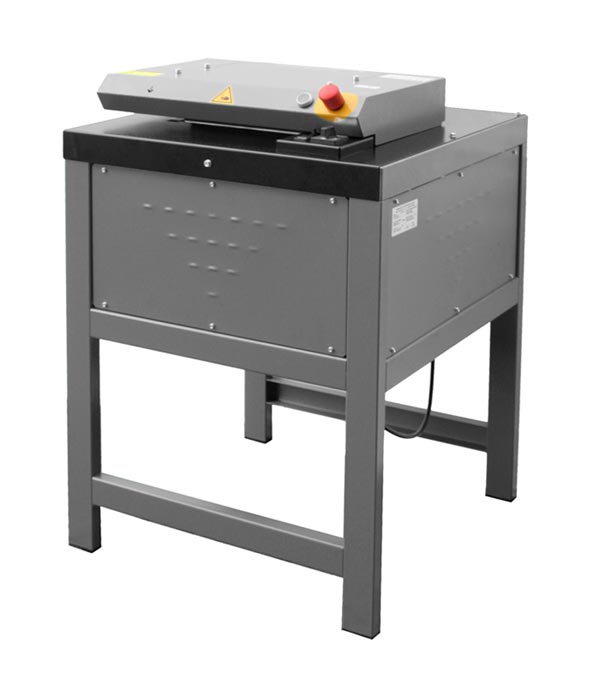

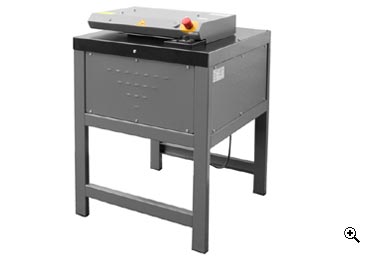

HU-KP-100

Old cartons become packaging materials, cushion material or flat cushion mats.

HU-KP-100

The machine has the following advantages:


  • Recycling old ones cardboard boxes
  • Lower the packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Emergency switch
  • Machine CE compliant



Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:320 mm
Carton thickness:12 mm
Capacity:1 - 2 m3/h
Working height:870 mm
Motor-power:0.75 kW
Electric:230 V / 50 Hz / 1 Ph.
Dimension:
980 x 660 x 660 mm (LxWxH)
Weight:92 kg
weiss

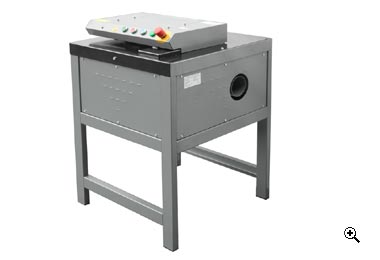

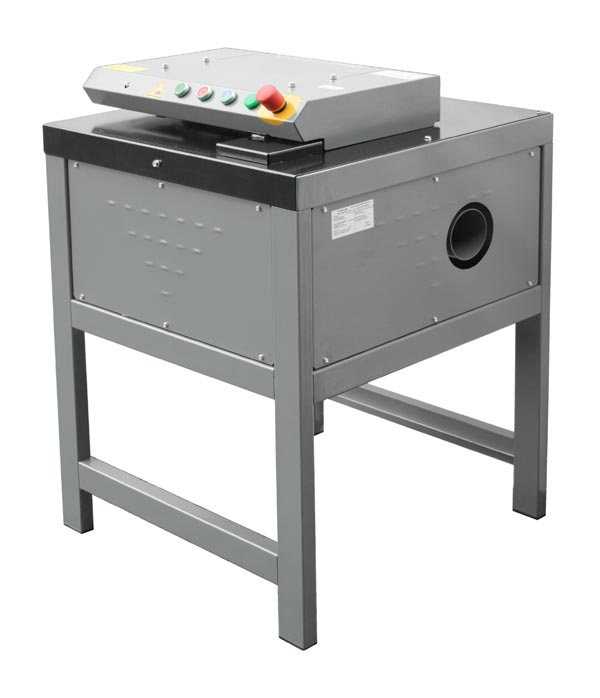

HU-KP-200

Old cartons become packaging materials, cushion material or flat cushion mats.

With connection option for dust extraction.

HU-KP-200

The machine has the following advantages:


  • Recycling old ones cardboard boxes
  • Lower the packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Prepared for connection a dust extraction
  • Emergency switch
  • Machine CE compliant





Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:320 mm
Carton thickness:15 mm
Capacity:2 - 3 m3/h
Working height:870 mm
Dust extraction:with connection to Mobil 100
Motor power:0.75 kW
Electric:230 V / 50 Hz / 1 Ph.
Dimension:
980 x 660 x 660 mm (LxWxH)
Weight:110 kg

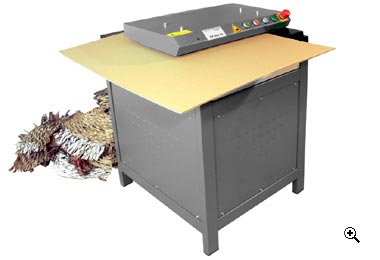

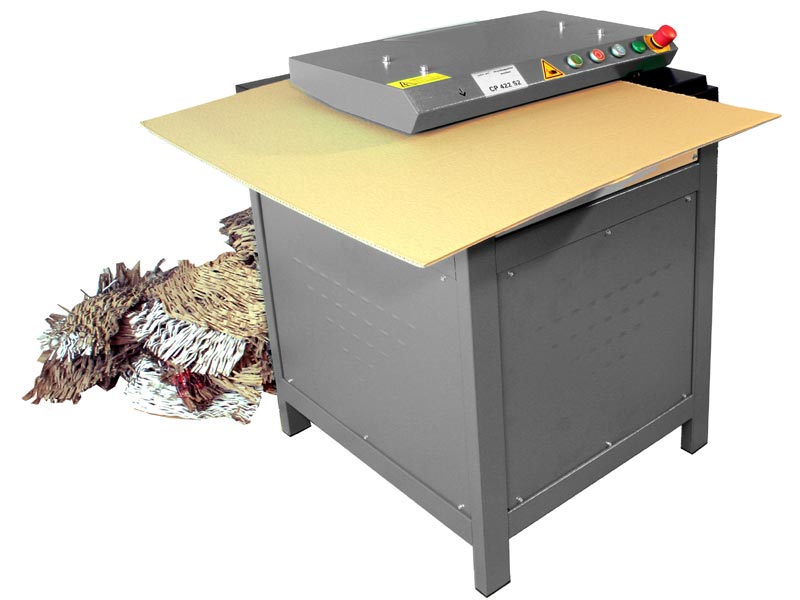

HU-KP-300

Old cartons become packaging materials, cushion material or flat cushion mats.

With connection option for dust extraction.

HU-KP-300
HU-KP-300

The machine has the following advantages:

  • Recycling old ones cardboard boxes
  • Lower the packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Prepared for connection a dust extraction
  • Emergency switch
  • Machine CE compliant





Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:420 mm
Carton thickness:18 mm
Capacity:4 - 6 m3/h
Working height:870 mm
Motor power:1.5 kW
Electric:230 V / 50 Hz / 1 Ph.
Dust extractionwith connection to Mobil 100
Dimension:
980 x 660 x 660 mm (LxWxH)
Weight:125 kg

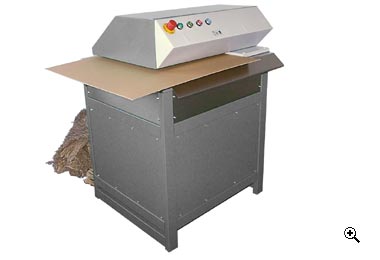

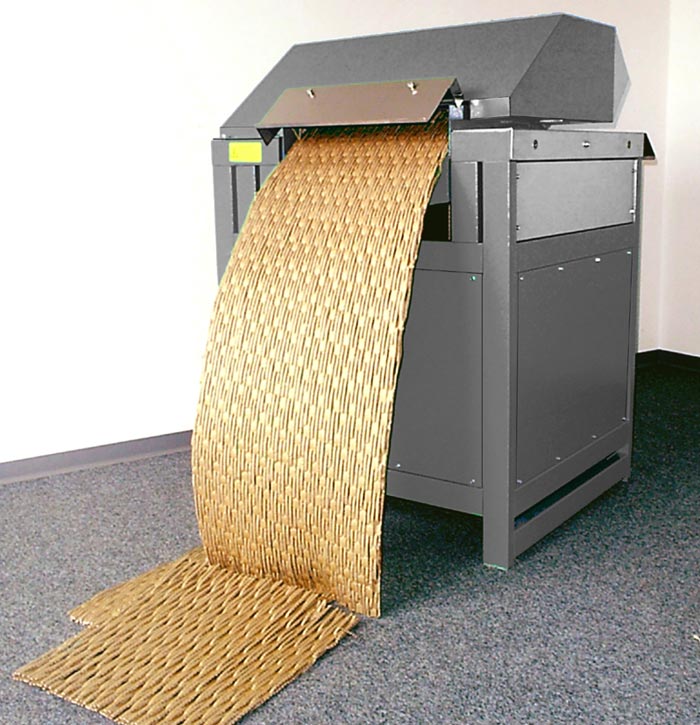

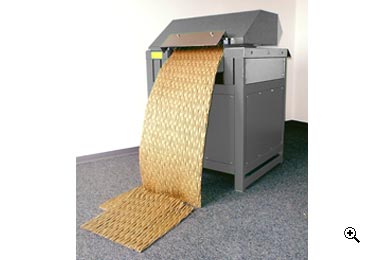

HU-KP-400

Old cartons become packaging materials, cushion material or flat cushion mats.

With connection option for dust extraction.

HU-KP-400

The machine has the following advantages:

  • Recycling old ones cardboard boxes
  • Lower the packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Prepared for connection a dust extraction at two speeds
  • Emergency switch
  • Machine CE compliant





Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:420 mm
Carton thickness:20 mm
Capacity:6 - 9 m3/h
Dust extraction:with connection to Mobil 100
Working height:890 mm
Motor power:3 kW
Electric:400 V / 50 Hz / 3 Ph.
Dimension:
1,100 x 750 x 800 mm (LxWxH)
Weight:252 kg
HU-KP-500

Old cartons become packaging materials, cushion material or flat cushion mats.

With connection option for dust extraction.

HU-KP-400

The machine has the following advantages:

  • Recycling old ones cardboard boxes
  • Lower the packaging costs
  • No disposal costs
  • Environmentally friendly packaging
  • Lower storage costs
  • Easy handling
  • High quality powder coating
  • Prepared for connection a dust extraction at two speeds
  • Emergency switch
  • Machine CE compliant





Technical Data:
Inlet width carton size:unlimited
Cutting width cushion:420 mm
Carton thickness:20 mm
Capacity:7 - 10 m3/h
Working height:890 mm
Dust extraction:with connection to Mobil 100
Motor power:4 kW
Electric:400 V / 50 Hz / 3 Ph.
Dimension:
1,100 x 750 x 800 mm (LxWxH)
Weight:295 kg

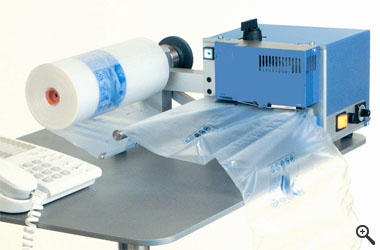

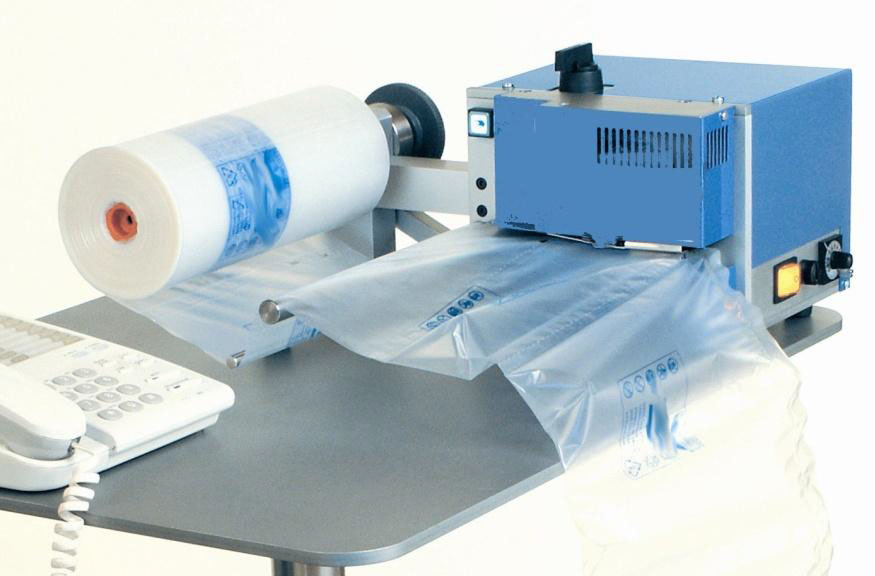

HU-LPM-1

Air cushion production machine


HU-LPM-1
Benefits of air cushion packaging:

  • clean packaged increases the satisfaction of recipients
  • hygienical
  • chemically neutral, 99% air
  • reusable
  • good insulating properties
  • excellent protection against shocks and knocks
  • unproblematic disposal
  • small, fast and flexible system
  • works without compressed air
  • no storage necessary
  • low noise
  • normal socket connection
The machine HU-LPM-1 is electronically controlled and therefore
delivers right from the first bag usable air cushion and can of course
also be used in continuous operation.
All necessary data of the film used in each case are read by sensors
when inserting the film.
The necessary parameters such as filling capacity, welding time
and transport are therefore ready for the machine control and
need not be entered by the operator.
No compressor is required to operate the machine, a simple
230 V power connector suffices.
Machine - Specifications
Air cushion size:100 x 120 mm;
100 x 230 mm;
133 x 230 mm
Capacity:max. 45 Luftkissen per minute
Dimensions (LxWxH):450 x 480 x 220 mm
Weight:6 kg
Elektric:230 V, 50 Hz
Power consumption:max. 0.15 kW/h
Consumable Material
Material:HDPE antistatic Film
Thickness:25 µ; 40 µ
Length:100 m
