Pallet Magazines
Pallet magazine for stacking and de-stacking of pallets without effort or injury.
Job security, even at very high stacks by the security fence.
HU-PALO-1/2
Humboldt

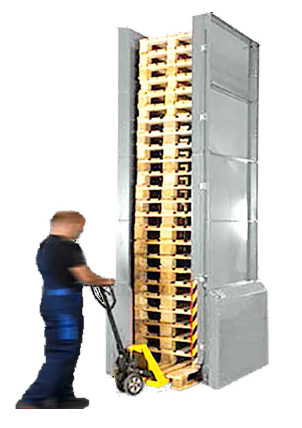

pallet magazine model HU-PALO-1/2 stacks and unstacks individual
pallets half the pallet length (600 mm length) at floor level.
Operation
is via a touch panel.

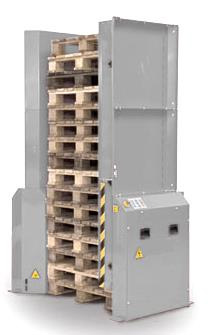

![HU-PALO-1/2](images/HU-Palo-1-2.jpg)
Load: | 15 pallets, 500 kg | |
Palett dimensions: | 600 x 800 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Power consumption: | max. 550 W | |
Compressed air version (optional): | 6 - 7 bar | |
Dimensions 15 pallets: | 935 x 1,450 x 2,350 mm (WxDxH) | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |
- Automatic detection via photocell, then stacking or destacking takes place
- The control takes place via SIEMENS S7-1200 control
- Reduced risk of accidents
- Manual pallet handling is no longer necessary
- Increased efficiency
- Optimized pallet flow
- Keeping clean your working place
- Pallets last longer
- Security fence for 15 pallets
- Optionally with max. level control indicator
- Compact machine construction
- Machine CE compliant
HU-PALO-2

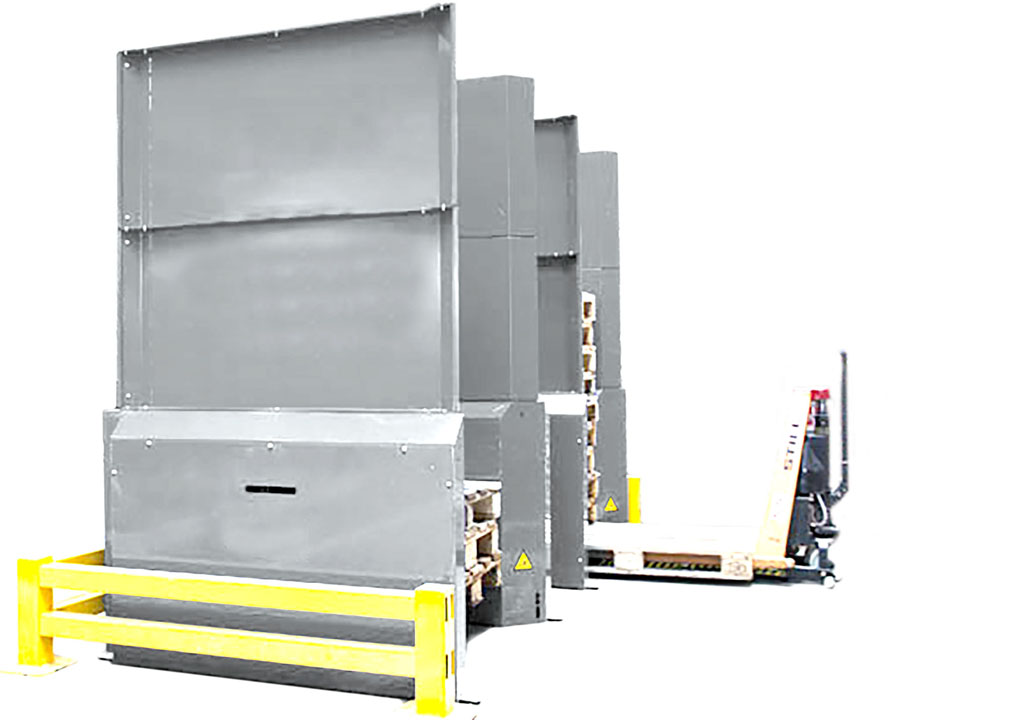

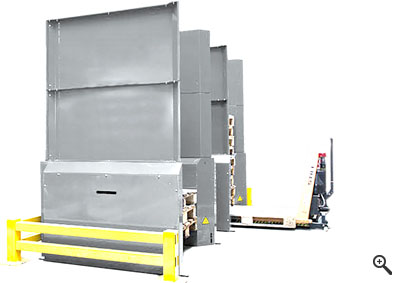

The HU-PALO-2 automatically stacks or unstacks single pallets at floor level.
For 15 - 25 pallets. Operation is via a touch panel.
Load capacity 15 pallets: Load capacity 25 pallets: | 15 pallets or 500 kg 25 pallets or 800 kg | |
Palett dimensions: | 1,200 x 800 x 150 mm (LxWxH) 1,200 x 1.000 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Power consumption: | max. 550 W | |
Compressed air version (optional): | 6 - 7 bar | |
Dimensions 15 pallets: Dimensions 25 pallets: | 1,520 x 1,340 x 2,350 mm (WxDxH) | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |
- Automatic detection via photocell, then stacking or destacking takes place
- The control takes place via SIEMENS S7-1200 control
- Reduced risk of accidents
- Manual pallet handling is no longer necessary
- Increased efficiency
- Optimized pallet flow
- Keeping clean your working place
- Pallets last longer
- Security fence for 15 or 25 pallets
- Optionally with max. level control indicator
- Compact machine construction
- Machine CE compliant
![](images/weiss_n8cjhcxz.jpg)

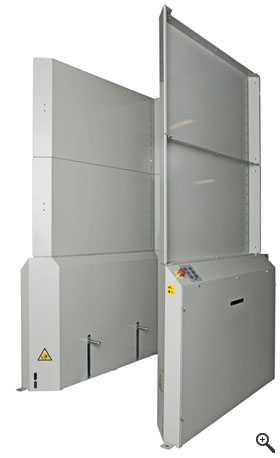

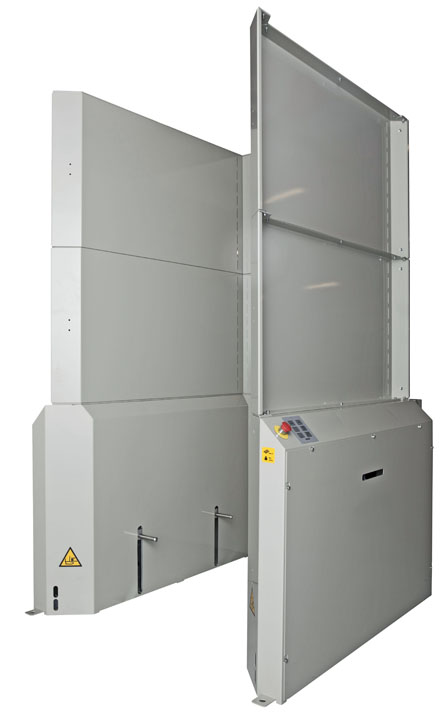

HU-PALO-3
The HU-PALO-2 automatically stacks or unstacks single pallets at floor level.
For 15 or 25 pallets. Operation is via a touch panel.
Load capacity 15 pallets: Load capacity 25 pallets: | 15 pallets or 500 kg 25 pallets or 800 kg | |
Palett dimensions: | 1,200 x 800 x 150 mm (LxWxH) 1,200 x 1.000 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Dimensions 15 pallets: Dimensions 25 pallets: | 1,520 x 1,340 x 2,350 mm (WxDxH) | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |

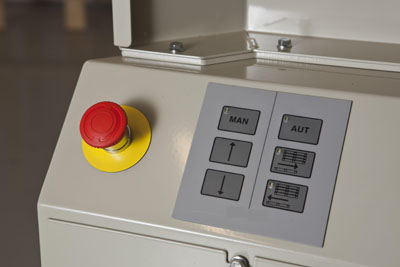

![HU-PALO-3 Steuerpult](images/HU-PALO-2-Steuerpult.jpg)
- Automatic detection via photocell, then stacking or destacking takes place
- The control takes place via SIEMENS S7-1200 control
- Reduced risk of accidents
- Manual pallet handling is no longer necessary
- Increased efficiency
- Optimized pallet flow
- Keeping clean your working place
- Pallets last longer
- Security fence for 15 or 25 pallets
- Optionally with max. level control indicator
- Compact machine construction
- Machine CE compliant
![](images/weiss_n8cjhcxz.jpg)
HU-PALO-3-AGV
Humboldt pallet magazine model HU-PALO-3-AGV is the ideal addition to driverless transport systems in order to fully automate the pallet flow. For 15 or 25 pallets.
New model for fully automatic AGV processes.

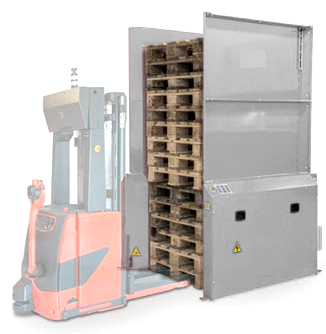

![HU-PALO-3-AGV](images/HU-PALO-3-AGV-grau.png)
Load capacity 15 pallets: Load capacity 25 pallets: | 15 pallets or 500 kg 25 pallets or 800 kg | |
Palett dimensions: | 1,200 x 800 x 150 mm (LxWxH) 1,200 x 1.000 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Dimensions 15 pallets: Dimensions 25 pallets: | 1,520 x 1,340 x 2,350 mm (WxDxH) | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |
- Interface for signal exchange between the pallet magazine and an AGV
- Data exchange with all AGV types
- The control takes place via SIEMENS S7-1200 control
- Stacks and unstacks individual pallets at floor level
- Reduced risk of accidents
- Manual pallet handling is no longer necessary
- Increased efficiency
- Optimized pallet flow
- Keeping clean your working place
- Pallets last longer
- Security fence for 15 or 25 pallets
- Max. Level control indicator
- Compact machine construction
- Machine CE compliant
![](images/weiss_n8cjhcxz.jpg)
HU-PALO-5
Humboldt pallet magazine model HU-PALO-5 stacks and destackes 1-5 pallets at floor level at the same time.
For 15 or 25 pallets.

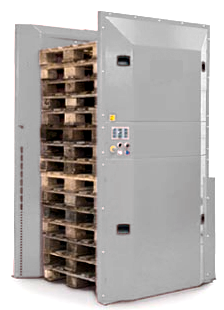

![HU-PALO-5](images/HU-PALO-5-grau.png)
Load capacity 15 pallets: Load capacity 25 pallets: | 15 pallets or 800 kg 25 pallets or 800 kg | |
Palett dimensions: | 1,200 x 800 x 150 mm (LxWxH) 1,200 x 1.000 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Compressed
air: |
min. 6-7
bar | |
Dimensions 15 pallets: Dimensions 25 pallets: | 1,555 x
1,475 x 2,350 mm (WxDxH) 1,555 x
1,475 x 3,765 mm (WxDxH) | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |
- Automatic detection via photocell, then stacking or destacking takes place
- The control takes place via SIEMENS S7-1200 control
- Reduced risk of accidents
- Manual pallet handling is no longer necessary
- Increased efficiency
- Optimized pallet flow
- Keeping clean your working place
- Pallets last longer
- Security fence for 15 or 25 pallets
- Optionally with max. level control indicator
- Forklift protection to avoid damage
- Compact machine construction
- Machine CE compliant
![](images/weiss_n8cjhcxz.jpg)
HU-PALO-INLINE

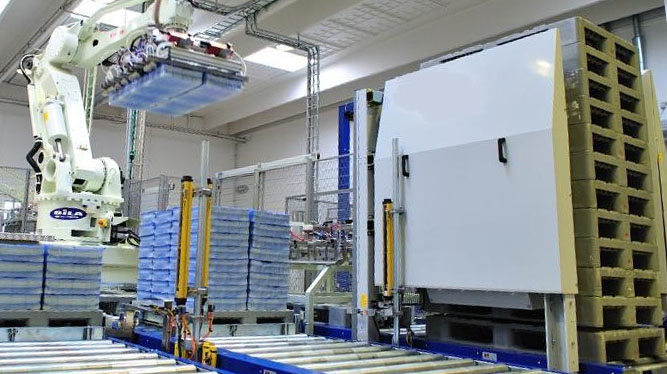

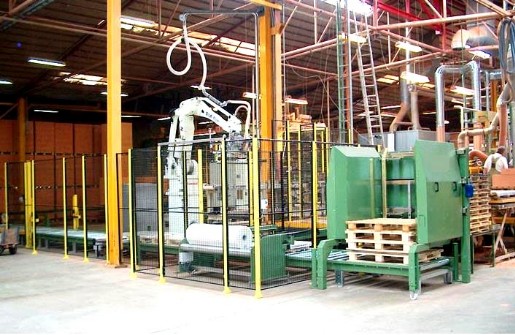

Humboldt pallet magazine model HU-PALO-INLINE stacks and unstacks individual pallets at the level of the conveyor technology.
Load capacity: | 15 - 20 pallets or 800 kg | |
Palett dimensions e.g.: | 1,200 x 800 x 150 mm (LxWxH) 1,200 x 1.000 x 150 mm (LxWxH) | |
Connection: | 230 V, 50 Hz., 1 Ph. | |
Compressed air: | min. 6-7 bar | |
Compressed air consumption: | 55 l / cycle | |
Speed approx.: | 15 sec | |
Protection class: | IP 64 | |
Colors standard: | RAL 7032 gray, RAL 7035 gray, RAL 3002 red, RAL 5002 blue |
- The system is prepared for connection to an external control
- Can be arranged across many types and orientations of conveyor lanes
- Reduced risk of accidents
- Increased efficiency
- Optimized pallet flow
- Pallets last longer
- Security fence for 15 to 20 pallets
- Optionally with max. Level control indicator
- Compact machine construction
- Machine CE compliant

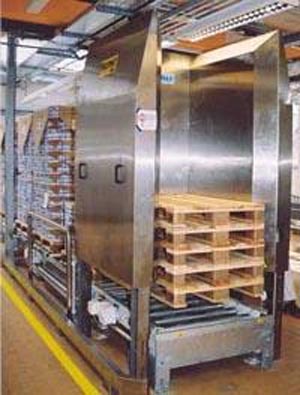

![HU-PALO-Inline](images/HU-Palo-inline-2.jpg)
![HU-PALO-Inline](images/HU-Palo-inline-3.jpg)
