Automatic Strapping Machines

HU-600 / HU-601-D

Automatic strapping machine

HU-601-D: with automatic tape threading, electronic tape tension and table photocell

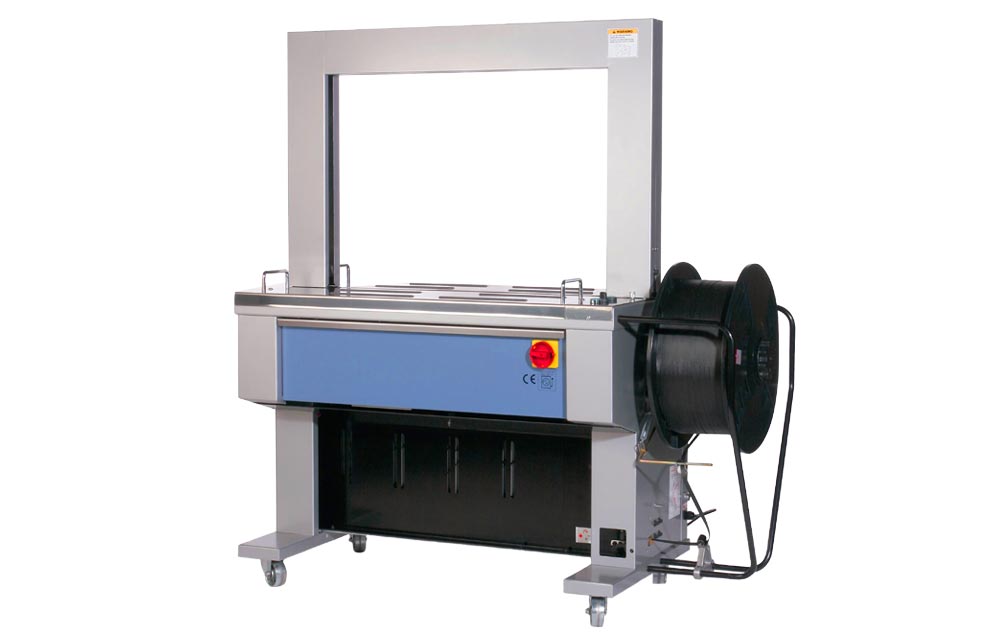

HU-600
Capacity:
28 per min.
Strap width:
8, 9, 10, 12, 15,5 mm
Strap tension:
7 - 45 kg
Table working height:
810 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1.430 x 620 x 1.540 mm (LxWxH)
Arch size:850 x 600 mm (WxH)*

* Other dimension for request

    Video HU-601-D

    Video HU-600
HU-600:

HU-601-D:

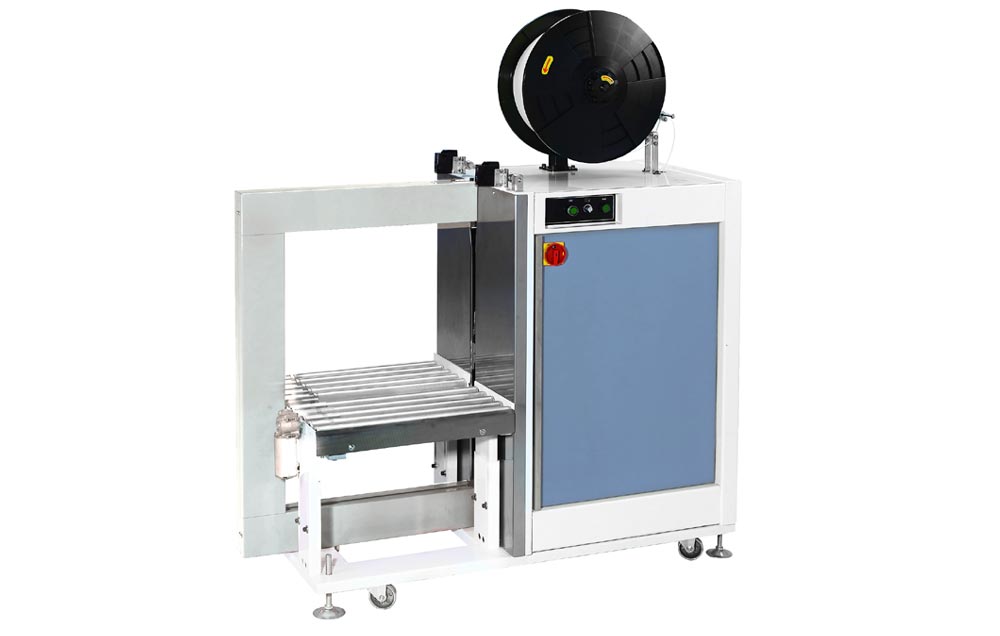

HU-601-S

Automatic side sealing strapping machine

Capacity:
28 per min.
Strap width:
8, 9, 10, 12, 15,5 mm
Strap tension:
7 - 45 kg
Table working height:
min. 230 mm
Elektric:400 V, 3 Ph., 50 Hz
Machine dimension:
1.685 x 616 x 1.755 mm (LxWxH)
Arch size:
600 x 850 mm (WxH)*
* Other dimension for request

   Video


HU-601-S

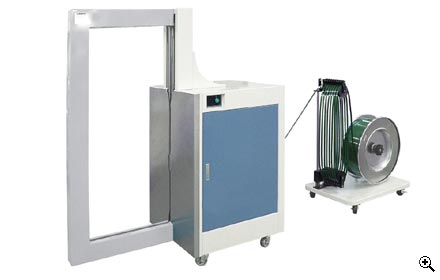

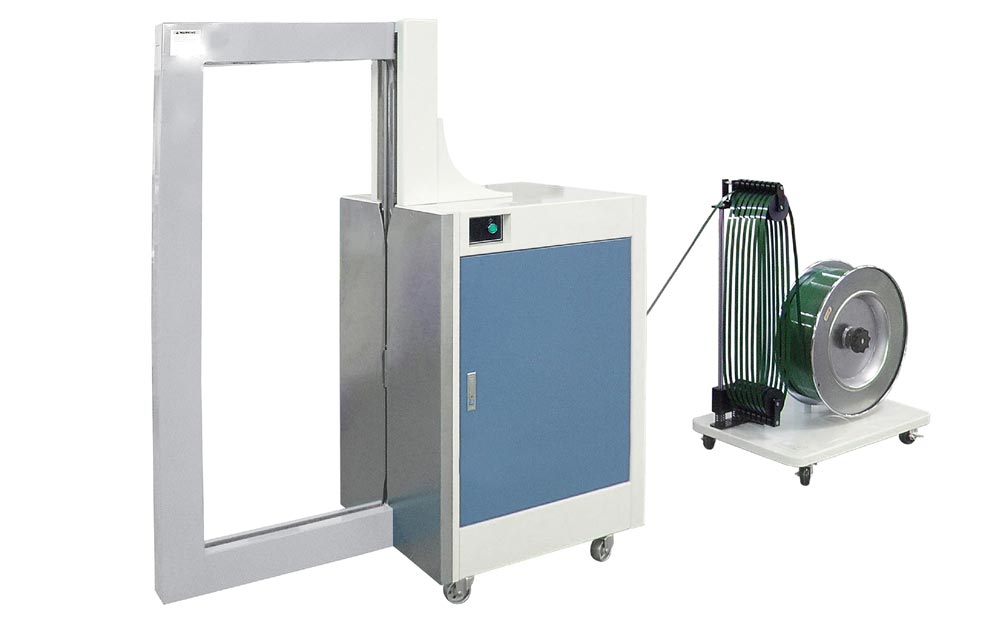

HU-601-SPT

Automatic side sealing strapping machine for PET strap

HU-601-SPT
Capacity:
11 per min.
Strap width:
9, 12, 15,5 mm
Strap tension:
20 - 150 kg
Table working height:
min. 230 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1.485 x 620 x 1.810 mm (LxWxH)
Arch size:
600 x 850 mm (WxH)*

* Other dimension for request

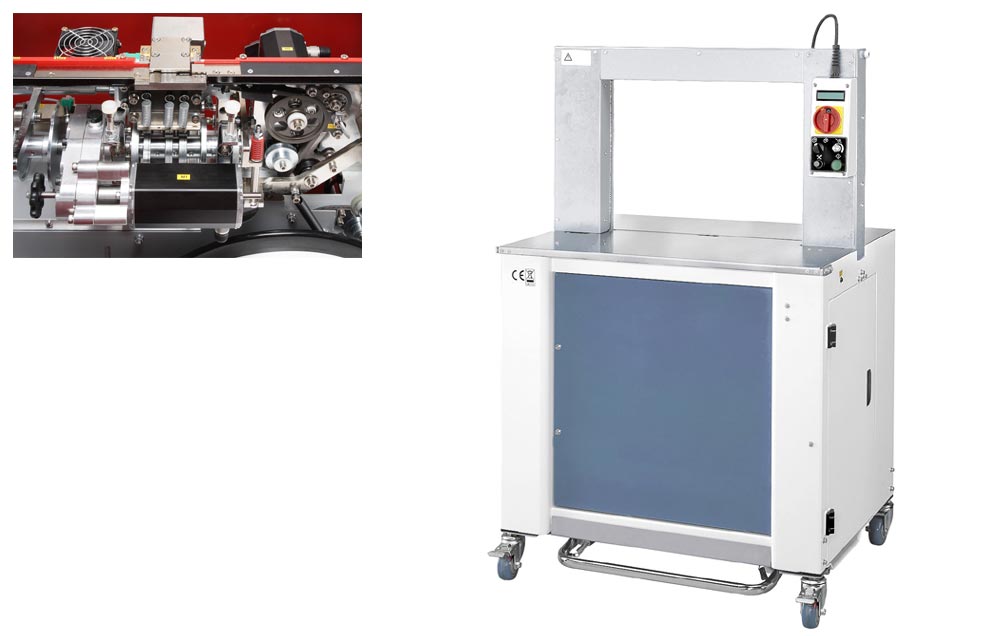

HU-702

Automatic high speed strapping machine



Capacity:
65 per min.
Strap width:
5, 6, 9, 12 mm
Strap tension:
1 - 45 kg
Table working height:
820 - 920 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
840 x 650 x 1.305 mm (LxWxH)
Arch size:
600 x 500 mm (WxH)*

* Other dimension for request
   Video      Video footswitch

  Video HU-702-12 with 12 mm bandwidth and
skate wheel conveyor

HU-702

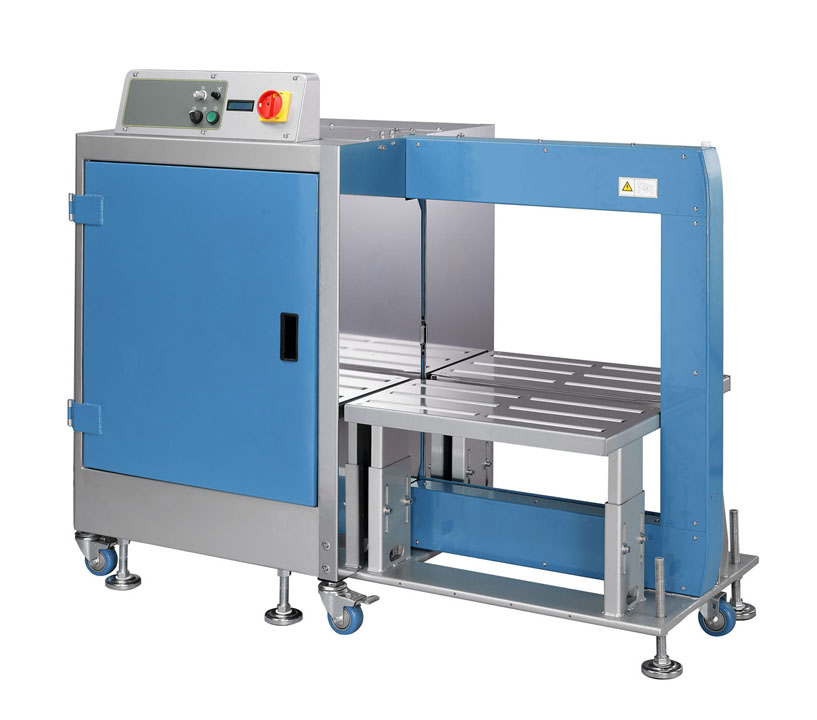

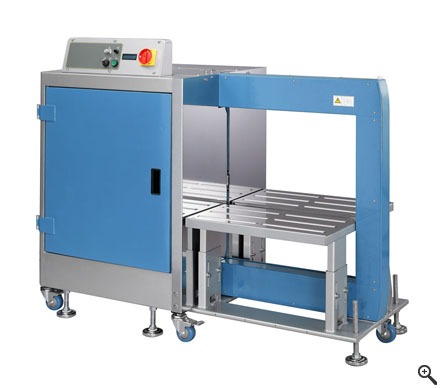

HU-702-S

Automatic high speed side sealing strapping machine

HU-702-S
Capacity:
60 per min.
Strap width:
5, 6, 9, 12 mm
Strap tension:
1 - 32 kg
Table working height:
445 - 645 mm
Elektric:230 V, 1 Ph., 50 Hz
Machine dimension:
1.455 x 670 x 1.300 mm (LxWxH)
Arch size:
600 x 650 mm (WxH)*
* Other dimension for request
