Carton Closing Machines

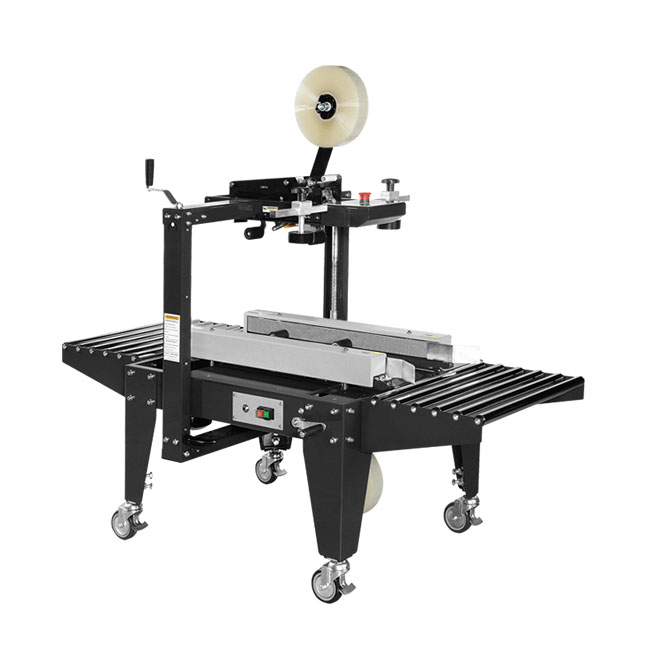

HU-K-2-SD (semi automatic machine)

The HU-K-2-SD is a semi-automatic carton sealer with manual format adjustment, which closes inexpensive same-sized boxes top and bottom in large numbers in one operation.

Machine specification:

Belt speed: 20 m per min.
Tape width: 50 or 75 mm
Tape overlap: 45, 50, 55 mm
Working height: 600 - 800 mm
Drive motor: 230 V, 50 Hz.
Power consumption: 0.5 kW
Dimensions (LxWxH): 1.621 x 915 x 1.300 - 1.500 mm
Weight: 131 kg
Color: RAL 7021

Carton dimensions:

Length: min. 150 mm - max. unlimited
Width: min. 150 mm - max. 500 mm
Height: min. 120 mm - max. 500 mm

> Download data sheet HU-K-2-SD

Video

Technical details:

Manual format changeover can be quickly adjusted using a hand crank
Gluing units arranged above and below
Units interchangeable
Lateral conveyor belts
Adjustable guide to bring the boxes into the machine centered
Easily adjustable tape tension
Adjustable working height
Compact design
Including belt infeed roller conveyor
Including belt run-out roller conveyor
Low energy consumption
Quick start version - after switching on the machine is immediately ready for use
Movable with rollers
Castors with brakes
Manual tape threading
Machine CE compliant

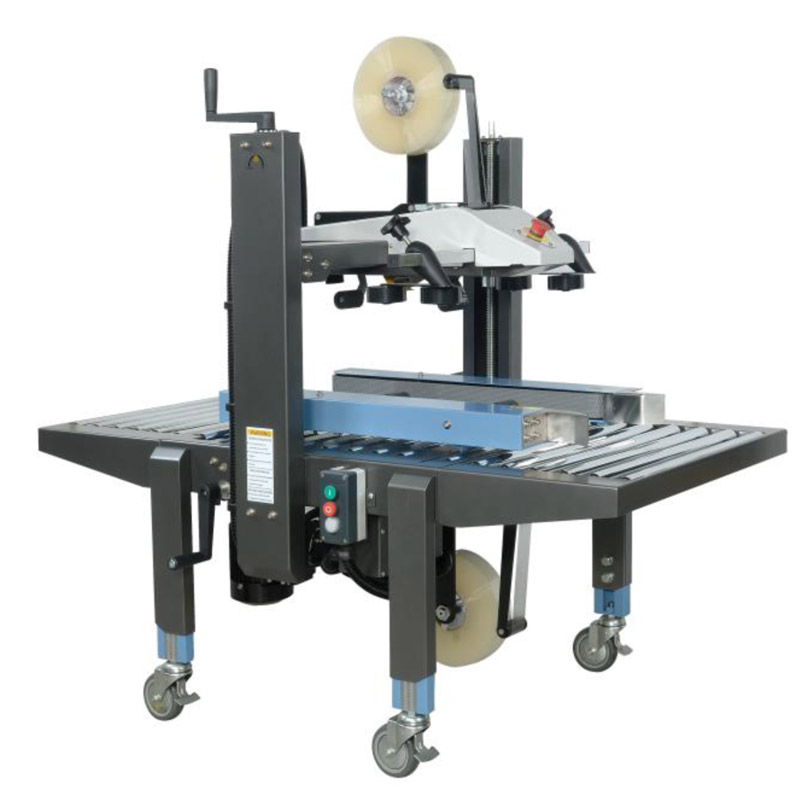

HU-K-2-SDP Premium

The HU-K-2-SD is a premium semi-automatic carton sealer with manual format adjustment, which closes inexpensive same-sized boxes top and bottom in large numbers in one operation.

Manual format setting

fast manual format change by hand crank adjustable
patented easy swapping of glue rolls
adhesive units arranged at the top and bottom
aggregates interchangeable
lateral conveyor belts
adjustable guide to bring the boxes centered in the machine
easily adjustable adhesive tape tension
working height variably adjustable
compact appealing design
incl. tape feed roller conveyor
incl. belt exit roller conveyor
low energy consumption
quick start version after switching on
the machine is immediately ready for use
movable by means of braked rollers
machine is CE-compliant

Carton-Dimensions:

Length: min. 120 mm - max. unlimited

Width: min. 110 mm - max. 500 mm

Height: min. 120 mm - max. 500 mm

> Download data sheet HU-K-2-SDP

Video

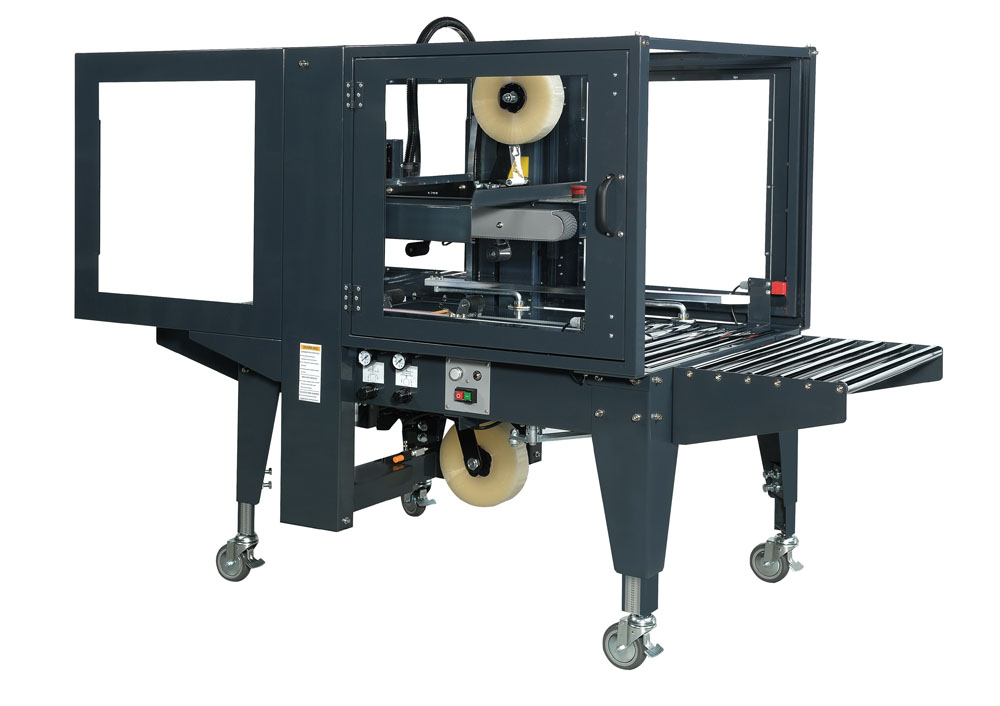

HU-K-4-SD

Semi-automatic carton sealing machine for changing cardboard formats.

Machine specification:

Belt speed: 20 m per min.
Tape width: 50 or 75 mm
Tape overlap: 45, 50, 55 mm
Working height: 600 - 800 mm
Drive motor: 230 V, 50 Hz.
Power consumption: 0.5 kW
Compressed air requirement: 6 kg / cm³ or 65 l / min.
Dimensions (LxWxH): 1.300 x 930 x 1.291 - 1.551 mm
Weight: 170 kg
Color: RAL 7021

Carton dimensions:

Length: 170 - unlimited mm
Width: 170 - 500 mm
Height: 100 - 500 mm

> Download data sheet

Characteristics:

Automatic format setting
Gluing units above and below arranged
Units interchangeable with each other
Compact design
With security doors
Stable and durable
Steel construction
Lateral conveyor belts
Easily adjustable
Tape tension
Adjustable working height
Compact design
Knife protection for max. safety
Incl. Belt infeed roller conveyor
Including belt run-out roller conveyor
Low energy consumption
Quick start version - after the switching on is the machine immediately ready for use
Movable with rollers
Castors with brakes
Manual tape threading
Machine CE-conform

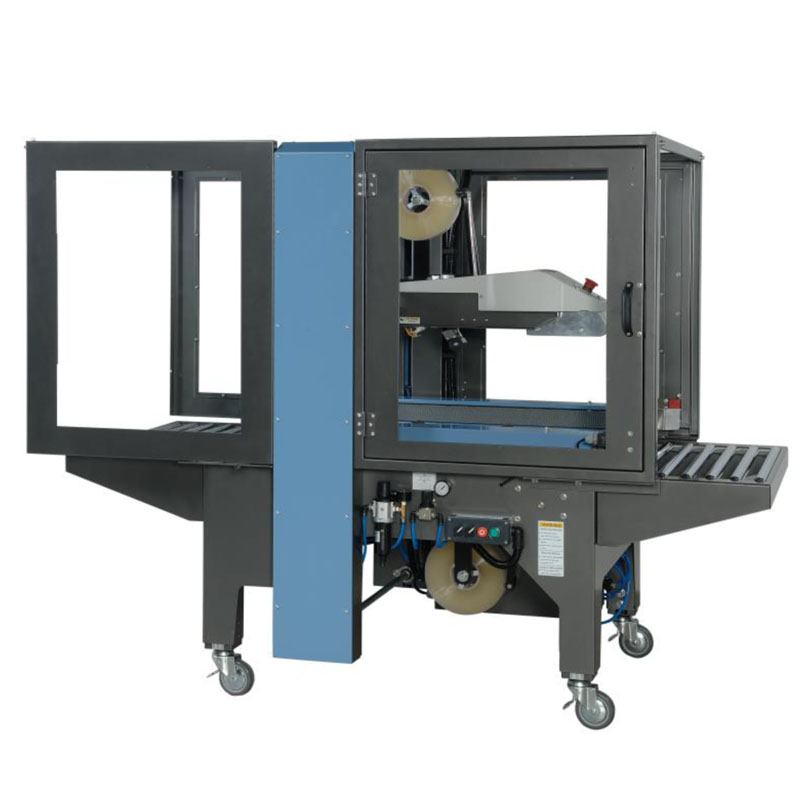

HU-K-4-SDP Premium

Semi automatic machine for changing carton formats

Carton-Dimensions:

Length: min. 120 mm - max. unlimited

Width: min. 110 mm - max. 600 mm

Height: min. 100 mm - max. 600 mm

For more technical information please see the HU-K-4-SDP data sheet:

> Download data sheet HU-K-4-SDP

Video

Video bottom closing and memory function

Technical details:

automatic format setting
by-pass function and 3 memory settings
patented easy swapping of glue rolls
with security doors
adhesive units arranged at the top and bottom
aggregates interchangeable
compact design
stable and durable steel construction
lateral conveyor belts
easily adjustable adhesive tape tension
working height variably adjustable
blade guard for max. safety
incl. tape feed roller conveyor
incl. belt exit roller conveyor
low energy consumption
quick start version after switching on
the machine is immediately ready for use
movable with rollers
casters with brake
machine is CE-compliant


> Download data sheet HU-K-4-SDP

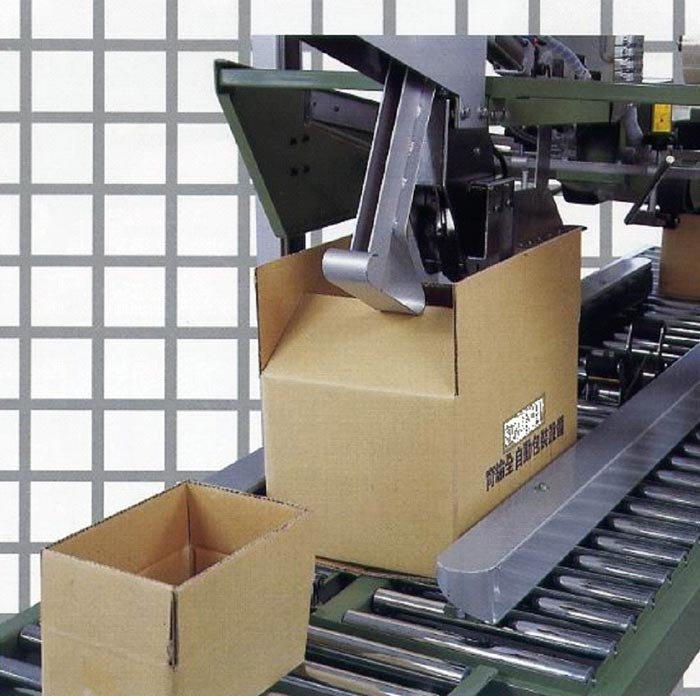

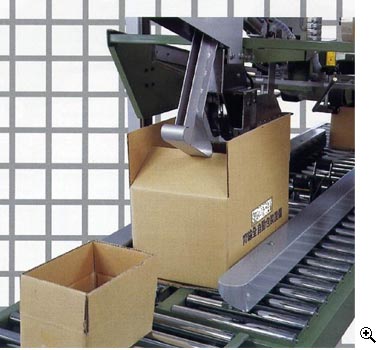

HU-K-16-SD (fully automatic machine)

compact design
heavy, stable steel construction
ease of use with a minimum of maintenance
adhesive aggregates top/bottom (bottom and top lid closure)
adhesive aggregates interchangeable
automatic cornering
complete pneumatic system
driving belts side wards
easily adjustable tape tension
knife protection for maximum safety
modular design for fast replacement of individual parts

Technical data:

closure: top and bottom
drive: conveyor belt arranged laterally
format adjustment: automatic
carton dimensions: length: 300 - 700 mm, width: 130 - 700 mm, height: 120 - 650 mm
capacity: 11- 20 Cartons per min. (depends on operator)
belt speed: 24 m / min.
tape width: 50 mm standard
processing material: self-adhesive tape
machine dimensions: 2,030 x 830 x 1,670 mm (LxWxH)
working height: 570 - 750 mm
weight: 140 kg
compressed air consumption: 4.5 kg/cm² or 3 ltr/carton

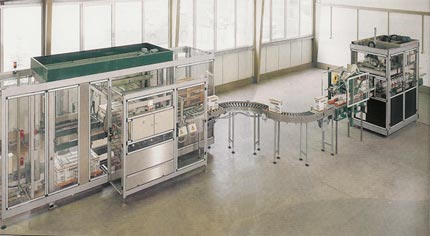

Practical example of a fully automated line

Fully automatic line for erecting cartons, filling ,capping, labeling and

palletizing device

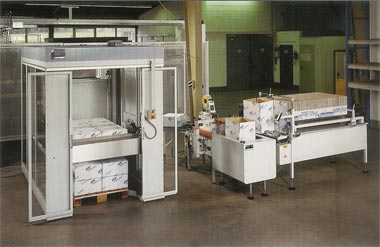

Example of a semi-automatic packaging machine

Semi-automatic packaging line for manual filling by an operator

carton magazine
bottom folder
carton closing unit
automatic palletizing
