Semi Automatic Strapping Machines for Pallet Strapping

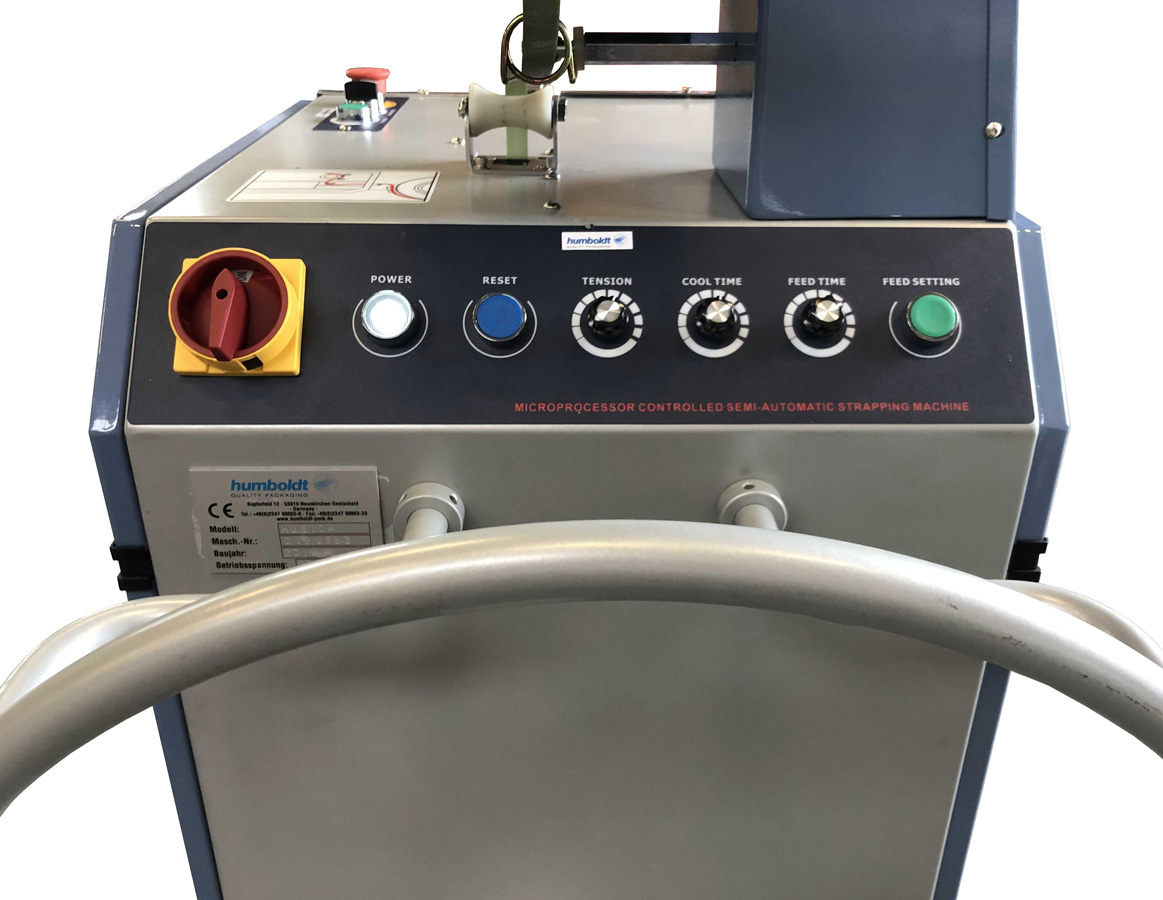

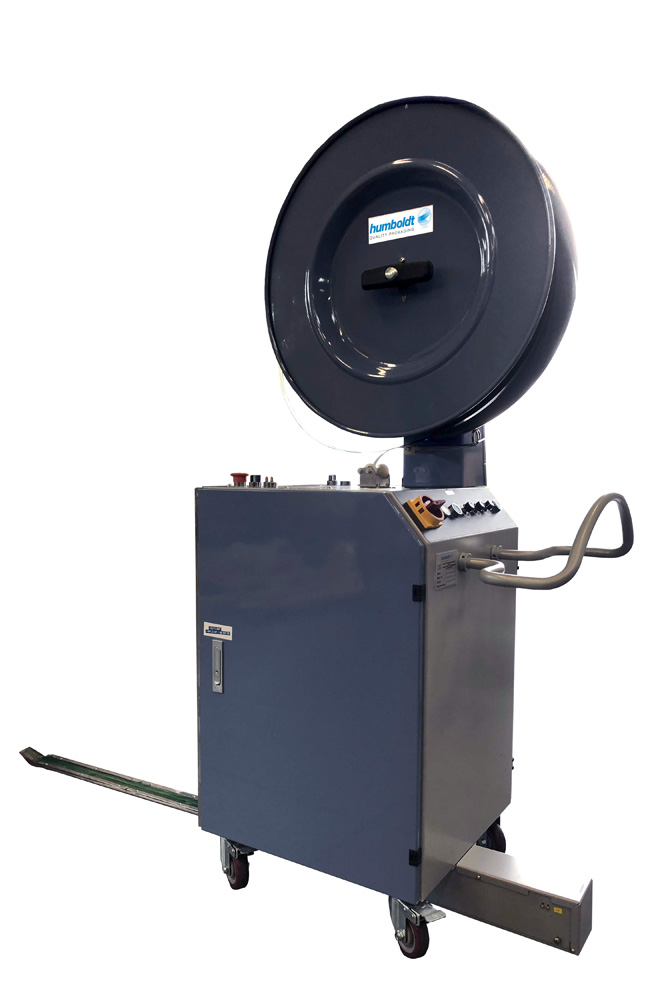

HU-310-PET
Semi-automatic pallet strapping machine, model HU-310-PET, with movable strap guide tongue. For the use of PET tape and PP tape in the dimensions of 9 mm to 19 mm wide, for strapping pallets of any size, shape and texture.
- Hot wedge closure
- Compact design
- Quick start: 60 sec.
- Energy-saving design - the motor runs only during the strapping process
- Movable, equipped with rollers, easy operation of the machine
- External tape dispenser for rolls Quick change
- Minimum product height 650 mm
- Emergency switch
- Machine CE-compliant
Capacity: | Dependent on operator | |
Strap width: | 9, 10, 12, 12.7, 15.5, 16 and 19 mm | |
Strap tension: | 5 - 150 kg | |
Package-size: | width and length: unlimited height: at least 650 mm | |
| Elektric: | 230 V, 1 Ph., 50 Hz, 0.6 kW | |
Machine dimension: | 1,147 x 662 x 1,523 mm (LxWxH) | |
| Weight: | 140 kg | |
| Lance length: | 700 mm | |
| Colour: | black | |

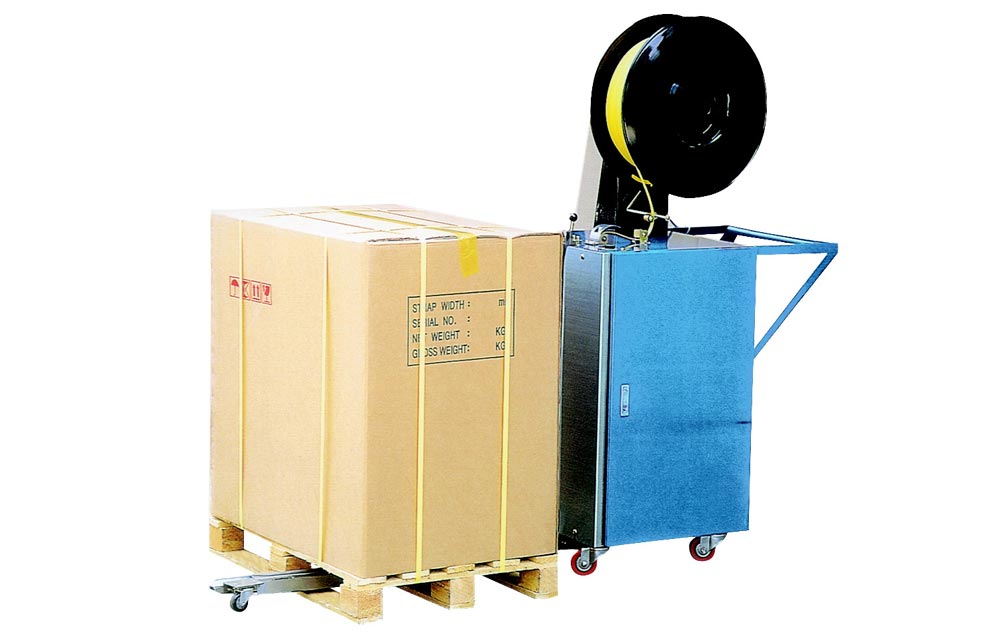

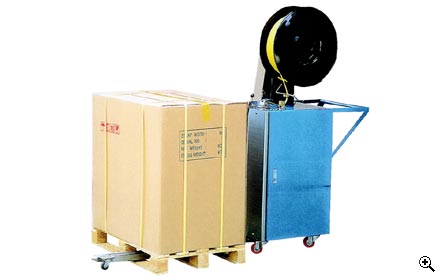

HU-310
Semi automatic strapping machine with fixed bayonet
Capacity: | Dependent on operator | |
Strap width: | 12 or 15 mm | |
Strap tension: | max. 100 kg | |
Table working height: | min. 500 mm | |
| Elektric: | 230 V, 1 Ph., 50 Hz | |
Machine dimension: | 1,800 x 524 x 1,500 mm (LxWxH) | |
Video

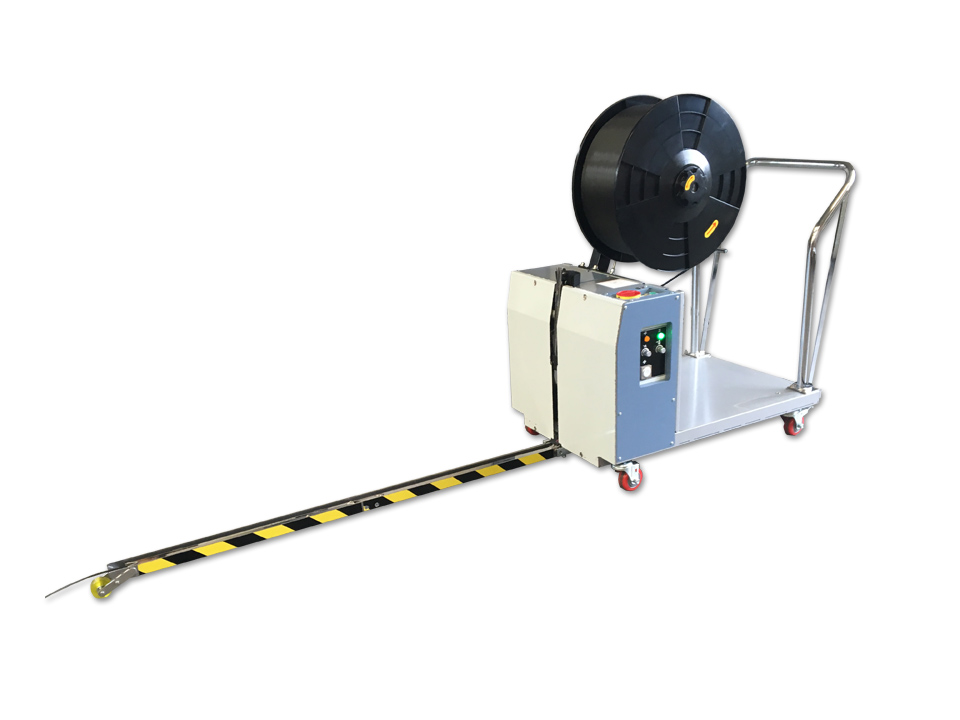

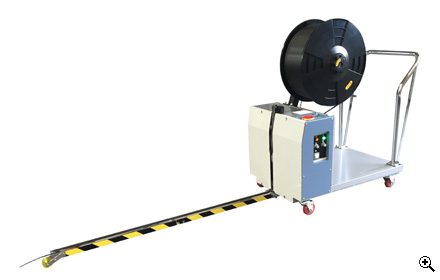

HU-350
Semi automatic strapping machine with bayonet (foldout)
HU-350 battery version:
Capacity: | Dependent on operator | |
Strap width: | 9, 10, 12, 12.7, 15 mm | |
| Strap thickness: | 0.5 - 1.0 mm | |
Strap tension: | 8 - 70 kg | |
| Bayonet length: | 1,300 mm | |
Package dimensions: | Length, width, height unlimited | |
| Drive motor: | 230 V, 1 Ph., 50 Hz, 0.33 kW | |
| Machine dimension: | 2,315 x 5585 x 1,074 mm (LxWxH) | |
| Weight: | 93 kg | |
| Option: | Battery operation | |
Video

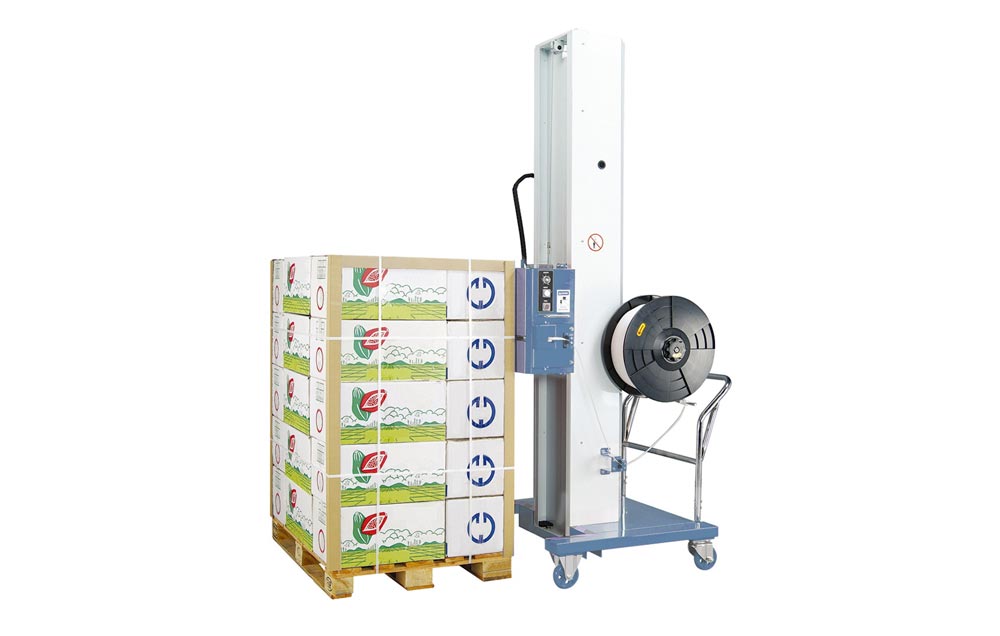

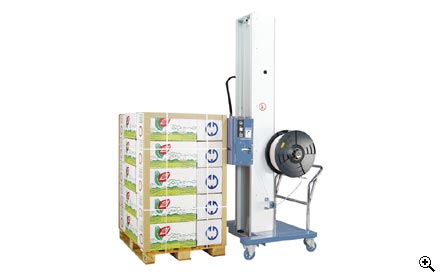

HU-340
Semi automatic strapping machine for variable horizontal strapping
Capacity:
| 8, 9, 10, 12, 15,5 mm | |
Table
working height:
| variable | |
| Product height: | min. 500 mm | |
| Machine dimension: | 850 x 560 x 780 - 950 mm (LxWxH) | |
